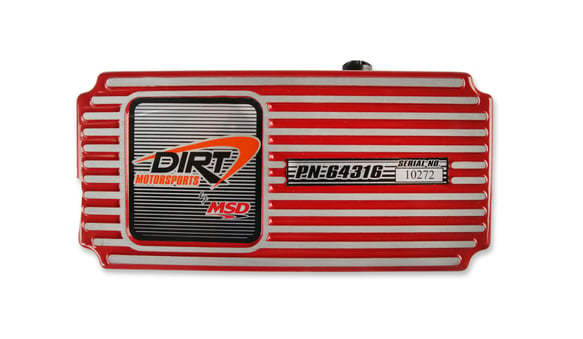

MSD 6ALN Ignition Control, DIRT 64316
Original price
$672.95
-
Original price
$672.95
Original price
$672.95
$672.95
-
$672.95
Current price
$672.95
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The 6ALN for DIRT Motorsports has a built-in Rev Control fixed to 7,600 RPM.. The rev control will save your engine from over-rev damage caused by missed shifts or driveline failure.
Originally designed with NASCAR in mind, the 6ALN is equipped with the 6-Pin Deutsch connector to meet NASCAR's ignition wiring rule. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection.
Features:
- Clear plastic base plate for easy tech inspection
- 6-pin Weathertight connector, mandatory for NASCAR use
- 110 millijoules per spark up to 15,000 RPM
- Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection
- Supplied with rubber shock mounts
- Built-in Soft Touch Rev Control is fixed to 7,600 RPM
- 470 primary voltage output to coil
- Accepts breaker points, amplifier and magnetic pickup trigger inputs
- Multiple spark, capacitive discharge ignition control
- Works on 12 - 18 volt electrical system
- Multiple sparks for 20 degrees of crankshaft rotation
- Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops
- Circuit board is encased in a clear two part silicone elastomer
