Cd-1 Marine Ignition Box Only Ð 103001

Description

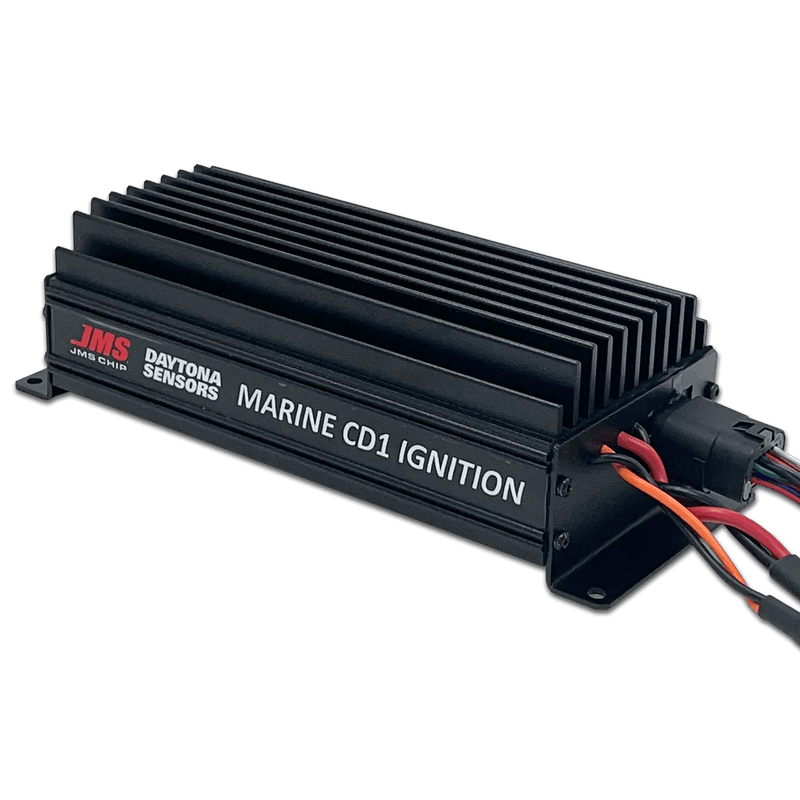

Cd-1 Marine Ignition Box Only p/n 103001 Ð with idle stabilization

Simple to install and configure, perfect for ALL big-block and small-block marine engines that utilize a distributor.

Also, our marine ignition system can be used directly out of the box without any PC programming if connecting to a locked out or mechanical or vac advance distributor (points, TFI or magnetic pickup).

Includes: CD-1 Marine Programable ignition module p/n 103001,  CD-1 Marine 12 pin wire harness, instructions and parts bag.

What is in the parts bag? Power and ground terminals (2), coil terminals (2), single pin weather pack male shell and terminal (1), single pin weather pack female shell and terminal (1), seals (2) optional diodes that are used when connecting inputs to solenoid type coils.

Product Features:

• 135mj of spark energy output
• rpm limit Ð 3000 rpm(min) and 9,900 rpm(max) adjustable in 100 rpm increments
• idle stabilization Ð optional ability to control rpm to keep your engine from stalling at the dock
• waterproof Ð encapsulated construction
• wiring Ð 12 pin waterproof harness
• compatible Ð All 8-4-6 cylinder even fire engines that utilize points, magnetic pickup distributor, four magnet crank trigger, Ford TFI or ECU trigger
• compact Ð  Ignition Module: 9.375_ L x 3.625_ W x 2.75_ H. Ñ  Coil: 4.4_ L  x 3.2_ W x 3_ H
• efficient, draws less than 5 amps of current at 8000rpm
• designed for 16v power systems (8-20v) and reverse polarity protected
• start timing retard is user configurable Ð up to 10 degrees of starting spark retard
• built-in data logging, also stores 5 hours of data at 10 samples/sec or 30 minutes of data at 100 samples/sec
• optional Ð dedicated input for timing retard (up to 18 degrees Ð adjust via switch)
• optional Ð dedicated input for manifold pressure input (configure via our simple to use software)
• optional Ð configurable inputs/output that can be programmed as a RPM Window Switch (Nitrous) or it can monitor/log a 0-5v sensor
• options Ð two additional user configurable inputs that can also be setup to monitor/log two 0-5v sensors.
• requires optional USB interface kit p/n 102004 to communicate and configure optional features
• simple to configure with our easy to navigate software (windows)
