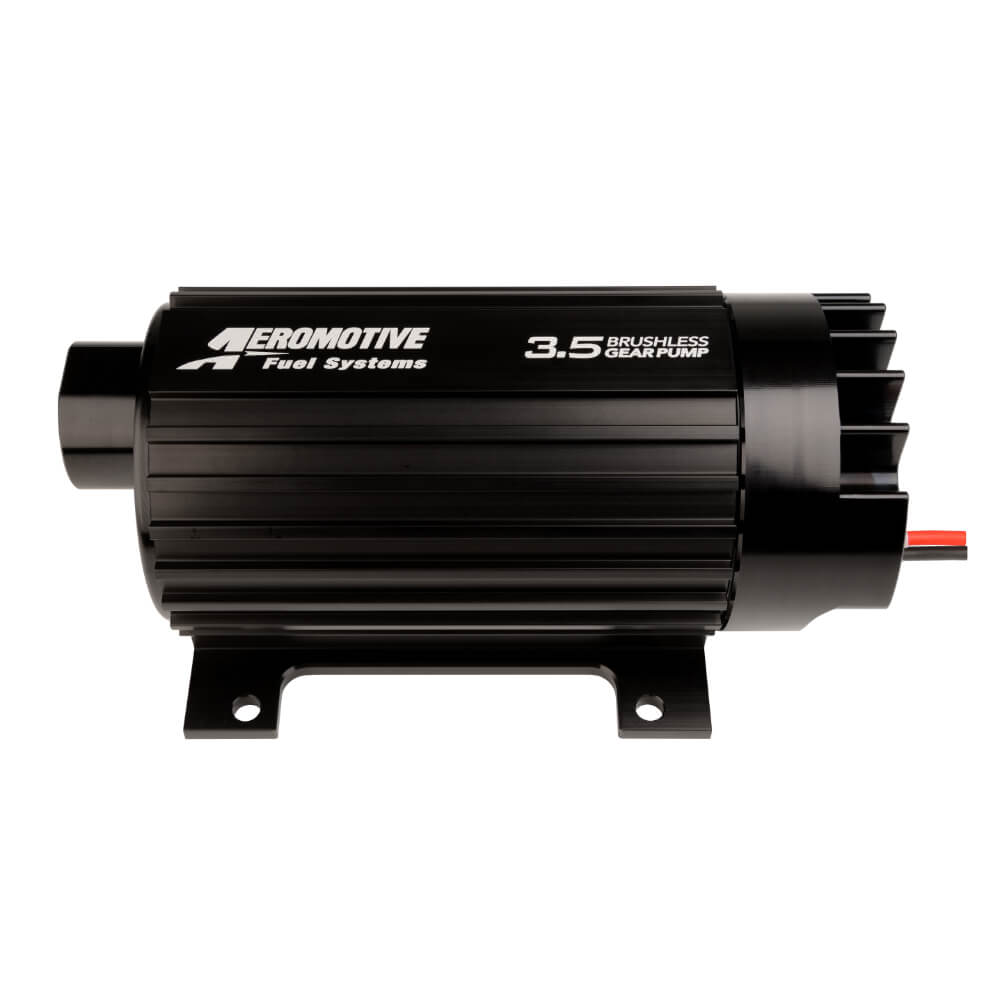

Aeromotive introduces its first brushless fuel pump series. The 3.5 Brushless Gear pump provides the Pro-Series Fuel Pump performance the world has come to trust and depend on, now available with the latest Spur-Gear pumping mechanism and brushless-motor technology. Built for up to 90 psi of sustained pressure, this new pump supports Pro-Series flow at higher pressures with minimal drop in flow. This new brushless spur-gear pump is able to move more fuel and sustain higher pressures without failure.
- The Pro-Series performance you expect and more:
-
Fuel injected engines: GAS
up to 2400 FWHP Ð naturally aspirated
up to 1800 FWHP Ð forced air induction -
Carbureted engines: GAS
Up to 2600 FWHP Ð naturally aspirated
Up to 2000 FWHP Ð forced air induction -
Fuel injected engines: E85
up to 1680 FWHP Ð naturally aspirated
up to 1260 FWHP Ð forced air induction -
Carbureted engines: E85
Up to 1820 FWHP Ð naturally aspirated
Up to 1400 FWHP Ð forced air induction -
Fuel injected engines: METHANOL
up to 840 FWHP Ð naturally aspirated
up to 630 FWHP Ð forced air induction -
Carbureted engines: METHANOL
Up to 910 FWHP Ð naturally aspirated
Up to 700 FWHP Ð forced air induction
-
Fuel injected engines: GAS
- Lighter than the traditional Pro-Series pump.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- ORB-12 inlet and ORB-10 outlet ports.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts
