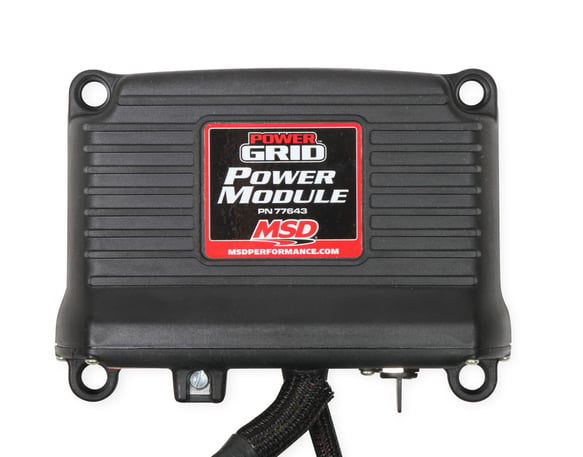

Power Grid Power Module - Black 77643
Original price
$749.95
-
Original price
$749.95
Original price
$749.95
$749.95
-
$749.95
Current price
$749.95
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Outputs can be controlled independently or simultaneously, giving great flexibility. It can be configured as a digital output (i.e. ON/OFF) or as a Pulse Width Modulated output (i.e. PWM) with user-programmable frequencies up to 10 Kilohertz.
A High Speed Data Logger can be used to record all functions when paired with the MSD PN 7730 Power Grid.
Outputs can use Time, RPM or temperature to control fans, pumps, nitrous systems and much more.
The MSD Power Module is a fully programmable, four stage solid state relay that can handle up to 20 Amps of current per channel. The Power Module eliminates the need for electromechanical relays, fuses and timers.
Features:
- Each channel is controlled via input wires or as programmed in the MSDView software
- Can be used stand alone or with MSD Power Grid PN 7730
- Built-in overcurrent protection, no fuses needed
- Takes the place of 4 electromechanical relays
- Available in Red (P/N 7764) or Black (P/N 77643)
- Data Acquisition available when used with MSD Power Grid
- Trigger signals can include power, ground, temperature, or time
- 80 Amp capacity, 4 channels rated up to 20 Amps each
About MSD
Explore MSD's range of unrivaled ignition systems and components at Holley.com!
