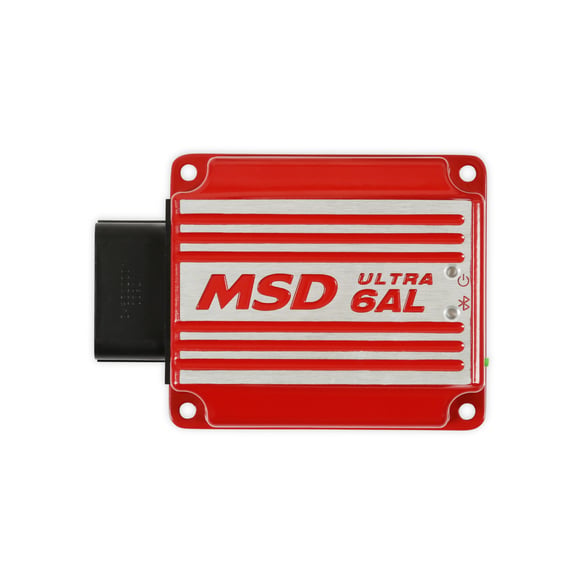

MSD Ultra 6AL Ignition Control - Red 6423
Original price
$349.95
-
Original price
$349.95
Original price
$349.95
$349.95
-
$349.95
Current price
$349.95
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value.
The Ultra 6AL Plus features boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor), making it the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor. Program through the "MSD Ultra 6AL" app or MSDView software via the integrated USB port. Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - you can plot the 3D graph and edit a table 20x20 either from Mobile app (phone) or from MSDView (laptop). Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, and Max (Race) RPM Value.
The new ground-breaking Ultra 6AL and Ultra 6AL Plus delivers full MSD power in a compact, feature dense, and lighter package!
Features:
- High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery - (Highly efficient Ignition, minimum heat and max spark energy with less current draw)
- Tach Output
- MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
- Increase spark series duration lasts for 18 of crankshaft rotation
- 15,000 RPM with 14.4 Volts
- Mobile app available settings: Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value
- 12-15 Volts, 7 Volt Start
- 0.8 Amps per 1,000 RPM
- The Ultra 6AL greatly expands on the capabilities of the 6-series line and is wirelessly controlled from a smart phone via the ÒMSD Ultra 6ALÓ app
- High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation
- Powerful capacitive discharge of multiple sparks improves performance - quickens throttle response & improves starting
- Alerts and monitors available
- Operates on most 7 to 28 volt electrical systems
- Programmable Step Retard (up to 30 degrees): On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation
- Built-in tri-step RPM rev limit capability - Launch, Burnout, and Step Retard activation
- Fully protected against an open coil, shorted coil & open load
- Programmable Start Retard: 0, 10, 20 degrees
- High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
- Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines
- Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM
