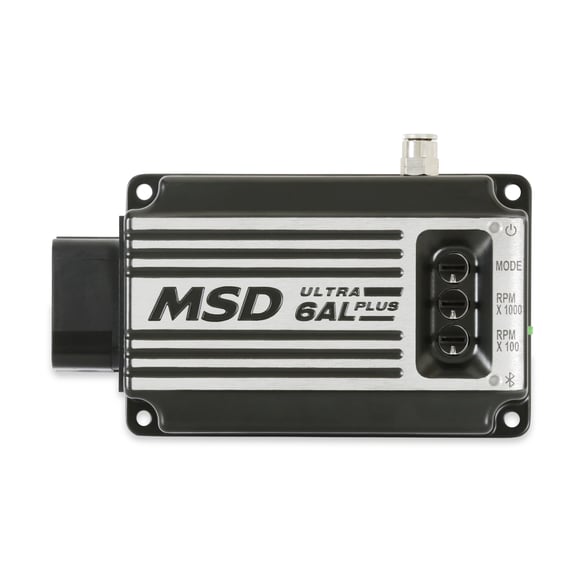

MSD Ultra 6AL Plus Ignition Control - Black 65233
Original price
$467.95
-
Original price
$467.95
Original price
$467.95
$467.95
-
$467.95
Current price
$467.95
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value.
The Ultra 6AL Plus features boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor), making it the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor. Program through the "MSD Ultra 6AL" app or MSDView software via the integrated USB port. Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - you can plot the 3D graph and edit a table 20x20 either from Mobile app (phone) or from MSDView (laptop). Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, and Max (Race) RPM Value.
The new ground-breaking Ultra 6AL and Ultra 6AL Plus delivers full MSD power in a compact, feature dense, and lighter package!
Features:
- Alerts and monitors available
- Launch, Burnout, and Step Retard activation inputs available. This ignition box has a built-in tri step RPM rev limit
- 15,000 RPM with 14.4 Volts
- Programmable Step Retard: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation
- Capable to program cylinder selection and start retard without a computer or app for old school racers (like 6425 or 6428 box)
- High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation
- Powerful capacitive discharge of multiple sparks improves performance
- Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM
- Boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor) - the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor
- Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value
- Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines
- Fully protected against an open coil, shorted coil & open load
- Programmable Launch Timing (Seconds vs degrees after launch wire activation)
- 0.8 Amps per 1,000 RPM
- High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
- Increase spark series duration lasts for 18 of crankshaft rotation
- 12-15 Volts, 7 Volt Start
- Operates on most 7 to 28 volt electrical systems
- High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery. - (Highly efficient Ignition, minimum heat and max spark energy with less current draw)
- Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - You can plot the 3D graph and edit a table 20x20 either from Mobile app (Phone) or from MSDView (laptop)
- Programmable Start Retard through rotary switches: 0, 10, 20 degrees
- Quickens throttle response & improves starting
- Easily installs on 4, 6, 8-cylinder engines with distributors
- Maximum programmable retard of 35 degree
- Program through the ÒMSD Ultra 6ALÓ app or MSDView software via the integrated USB port
- MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
- Tach Output
About MSD
Explore MSD's range of unrivaled ignition systems and components at Holley.com!
