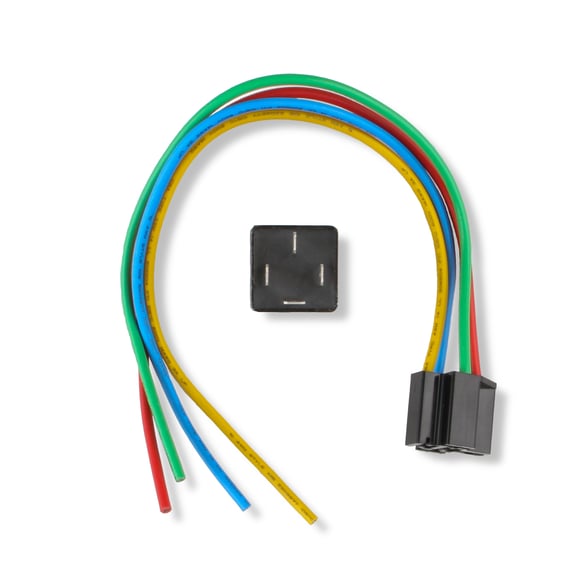

MSD Solid State N/O Relay w/Socket Harness 89612
Original price
$58.15
-
Original price
$58.15
Original price
$58.15
$58.15
-
$58.15
Current price
$58.15
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The benefit of a solid-state relay is that it has a faster activation circuit and no moving parts that wear, which increases the life of the relay. The absence of moving parts makes the solid-state relay less sensitive to mechanical shock, vibration and moisture.
MSD's Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11" long leads w/ heavy-duty 14-gauge wire.
Features:
- Continuous Load - 20Amp
- Max Coil Voltage 16-Volts
- Pigtail harness 14 AWG wires, 11Ó Long
- Max Inrush Load - Overload Protected at 80A
- Nominal Voltage 12-Volts
- SPST Normally Open
- Mini Solid State Relay
