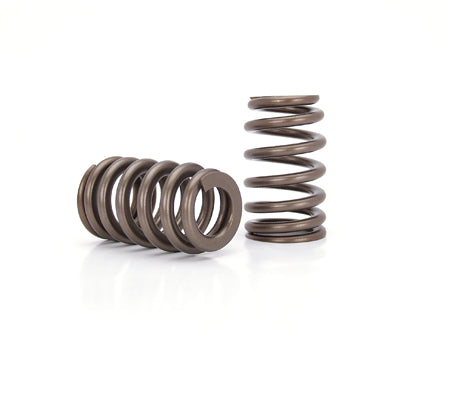

Beehiveª Valve Springs: Top 1.065" O.D., .650" I.D.; Bottom 1.240" O.D., .825" I.D.

With a .525" maximum lift, these Beehiveª Valve Springs were designed for hydraulic or solid flat tappet as well as hydraulic roller cams. They work in most Small Block Chevy heads with no machining. COMP Cams¨ Beehiveª Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehiveª shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehiveª design, the valve train can handle more RPM and more aggressive cam profiles.Part #ÊO.D.I.D.Seat LoadOpen LoadCoil BindRate (Lbs./In.)Titanium RetainerSteel RetainerCup SeatShims26981TopBottom1.0651.240.650.825110 @ 1.700292 @ 1.1751.1153477881787, 787, 79546934753
