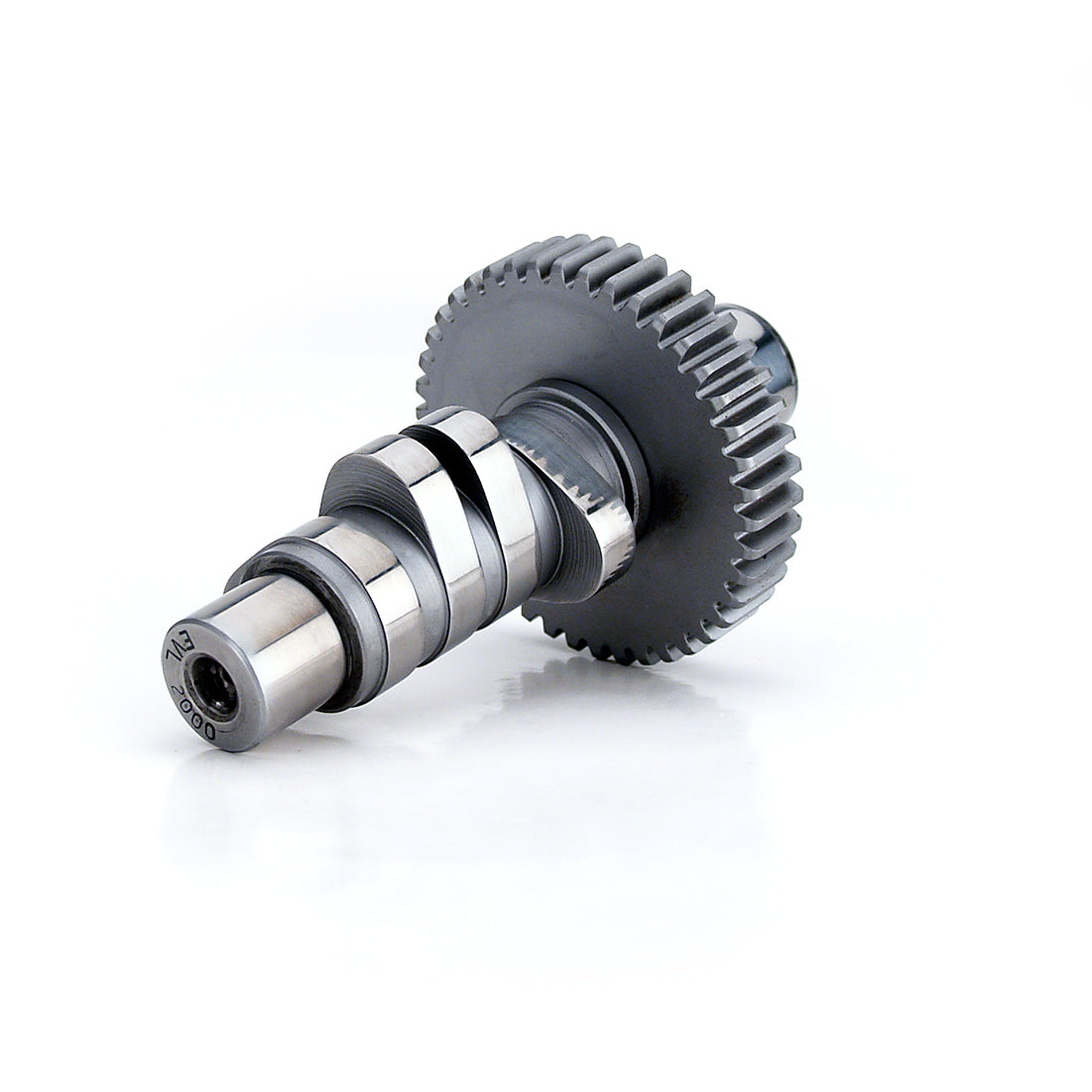

EVL 270 274 R106

¥ Hydraulic ¥ 9900-Kit V-Thunder Springs ¥ Serious Cam for Outstanding Top-End Power ¥ Needs Good Heads, Pipes & Carburetor ¥works best in 88 inch engines and larger ¥ Power to 7500rpm ¥ 11:1 Compression and up VThunder¨ cams provide the ultimate in arm-stretching, white knuckle power in both street and competitive applications.

Most cam designers concentrate on getting the most power in a particular RPM range and disregard valve train clatter and power band width. The designers at VThunder¨ pay particular attention to ramp design to keep our cams as quiet as possible and lobe design to maintain as wide a power band as possible. VThunder¨ cams are made from 6150 aircraft quality steel for ultimate durability and resistance to premature cam failure from metal fatigue. We heat treat our cams to provide a case depth that allows for long term use under extreme loads. With the aid of computer controlled machining centers, VThunder¨ cams are held to extremely precise tolerances. Gross Valve Lift Lobe Lift Duration @.053 Valve Timing Open/Close Lobe Center Line Lobe Separation Base Circle Radius Tappet Lift @TDC Valve Lift @TDC IN. EX. IN. EX. IN. EX. IN. EX. IN. EX. Ê Ê IN. EX. IN. EX. .608 .608 .380 .380 270 274 29/61 63/31 106 106 106 .508" .144" .149" .230" .238"
