FT550/FT600 FTSPARK-8 PRO Harness
Sold out
Original price
$559.00
-
Original price
$559.00
Original price
$559.00
$559.00
-
$559.00
Current price
$559.00
Availability:
Out of stock
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

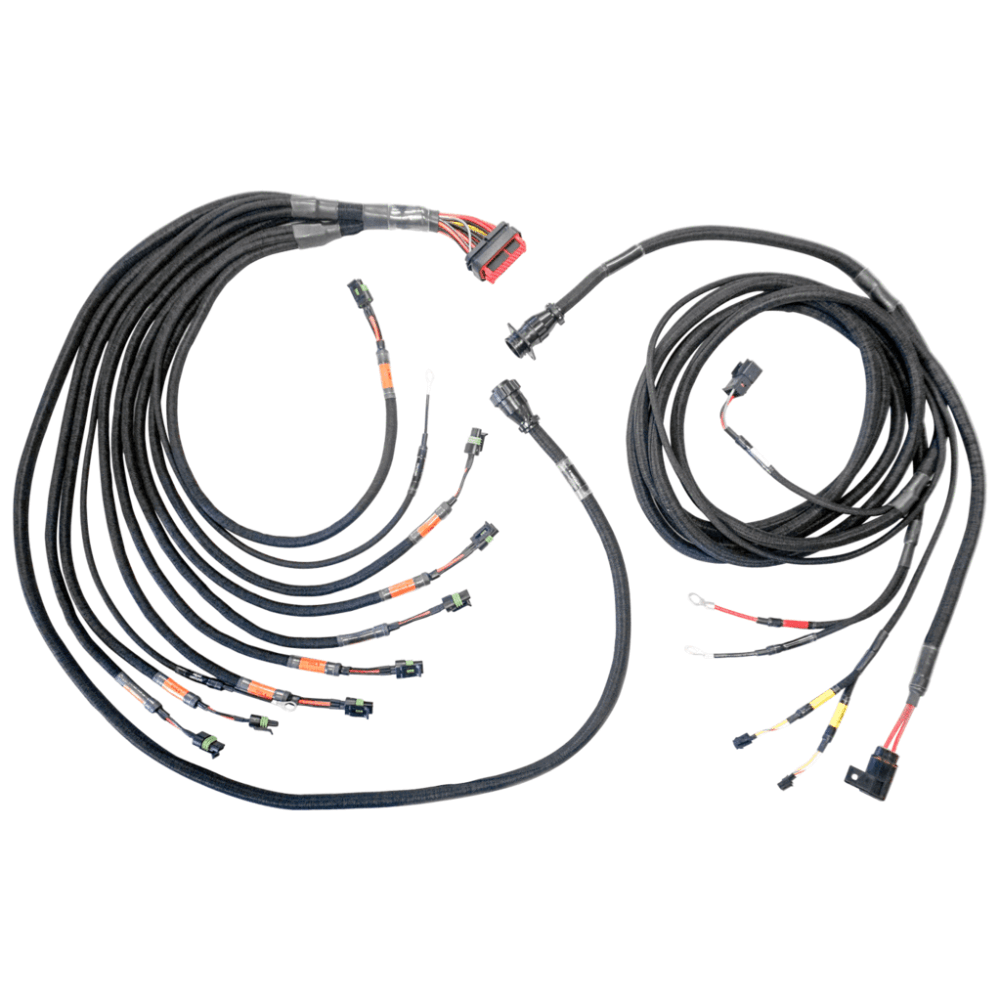

The FuelTech PRO550/600 FTSpark-8 harness is a true plug and play expansion to complement both the PRO550 and PRO600 V8 harness. With this expansion harness the user can make the change to a high powered multi coil setup with ease! The harness is fitted with a 16 way CPC firewall connection making adding the coils and FTSpark-8 a simple installation! The harness includes all terminations to suit the FuelTech CDI racing coilÕs, FuelTech CAN connection and output controls.
The FuelTech PRO550/600 FTSpark-8 harness has a label for each connector and the insulation is heat, moisture and oil resistant.
- For use with our FTSPARK-8 CDI module and FuelTech CDI Racing Coils.
- FTSPARK is a high power CDI ignition module compatible with ANY ECU on the market.
-
Specifically designed to plug n' play with our PRO600 harness.
If you are intending on using this harness with another ECU manufacturer, you will need to modify it and add 7 additional outputs wires. - This harness is built using a serial bus connection (1 wire) which only works with FuelTech ECUs - FT450 and above.
- Uses Outputs B (Gray wires) on PRO600 Harness.
- Includes: CAN connector, power and ground ring terminals (battery) and 10-way Connector with wires for connection with the ECU and CPC connector for the firewall.
