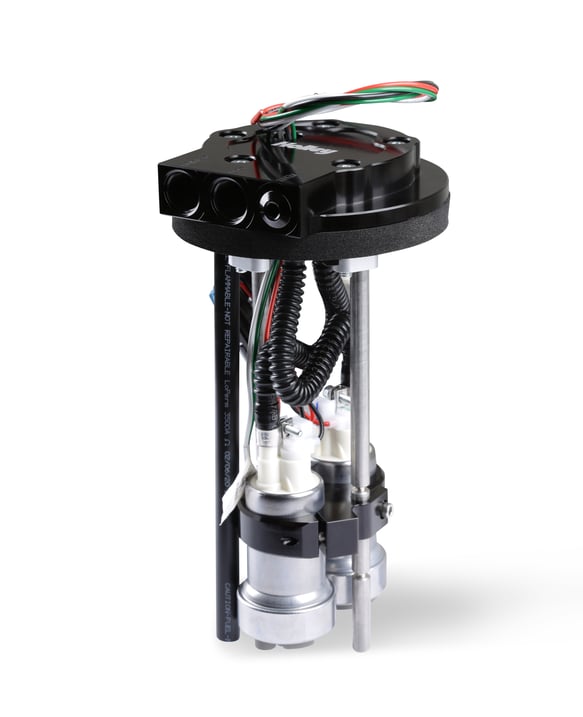

HOLLEY DUAL 450 LPH IN-TANK RETROFIT FUEL MODULE W/RETURN 12-173
Original price
$831.95
-
Original price
$831.95
Original price
$831.95
$831.95
-
$831.95
Current price
$831.95
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Looking to make a serious step up in the horsepower department? The Holley Dual 450 LPH EFI Pump Module would be an excellent choice. While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator.
The innovative clamping system allows you to locate the module nearly anywhere in the tank while retaining your factory fuel level sending unit. The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride.
12-173 - Twin 450 LPH - 34A @ 60 PSI, 30A @ 10 PSI
EFI
_ (Gas, 13.5V, 60 PSI) - 1750 HP
_ (E85, 13.5V, 60 PSI) - 1250 HP
Carburetor
_ (Gas, 13.5V, 10 PSI) - 2200HP
_ (E85, 13.5V, 10 PSI) - 1550 HP
Features:
- Billet, anodized, laser etched flanges with 8AN ORB Return/Outlet and 6AN ORB vent
- The innovative clamping system allows you to locate the module nearly anywhere in the tank while retaining your factory fuel level sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Easy install Ð just drill a 4Ó hole in the top of the tank then use hand tools
- E85 compatible
- The dual pump design allows the pumps to be ran together or the second pump can be triggered additionally when you need it (Hobbs switch, Holley EFI auxiliary pump circuit, etcÉ)
- Units install in tanks from 7Ó Ð 12Ó deep
- Filter socks included, Hydramats can be purchased separately
- Easily wire with an MSD High Current Solid State Relay (75643, 75643-HC, 7564, 7564-HC) or dual relay kit (12-759)
About Holley
Holley Performance Brands is the undisputed leader in carburetors, fuel pumps, fuel injection, intake manifolds, fuel injection, and fuel systems.
