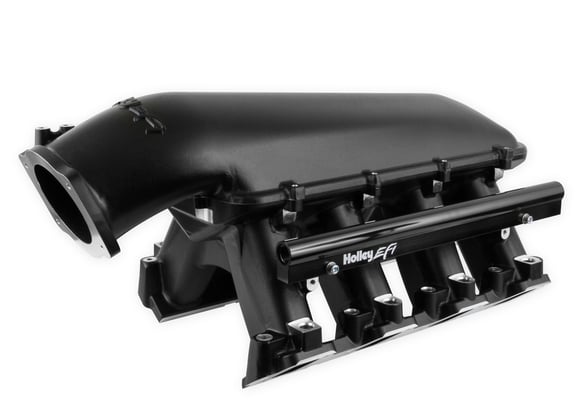

Holley LS Hi-Ram EFI Manifold-Black GM LS7 300-124BK
Original price
$1,299.95
-
Original price
$1,299.95
Original price
$1,299.95
$1,299.95
-
$1,299.95
Current price
$1,299.95
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Holley GM LS7 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS7 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
¥ The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
¥ Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
¥ EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
¥ Cast aluminum construction.
¥ Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
Features:
- Runner Length Ð 6.29Ó, As-Cast Runner Cross-Sectional Area Ð Tapered 4.67in_ to 2.84 in_
- Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height Ð 8.42Ó (from engine block lifter valley cover flange), Longitudinal Location Ð 3.84Ó (forward from engine block front flange), Angle Ð 25 deg. (down from vertical)
- Plenum Top Gasket Type Ð 3/32Ó Round O-ring Cord
- Mounting Flange Gasket Type Ð Standard LS3 Molded O-Ring
- Port Size Ð 2.49Ó Height x 1.21Ó Wide
- Total Height with 92/102mm EFI Plenum Top Ð 12.32Ó to the lifter valley cover flange on engine block.
- Base Plenum Top Mounting Flange Height Ð 8.42Ó to the lifter valley cover flange on engine block.
About Holley EFI
Find standalone EFI for LS, Coyote, Hemi and more at Holley.com. From engine swapping to managing up to 4000 horsepower, we have a solution for every project!
