Holley Standalone Digital Dash Kit 553-109
Original price
$1,663.95
-
Original price
$1,663.95
Original price
$1,663.95
$1,663.95
-
$1,663.95
Current price
$1,663.95
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Have you been looking for a dash solution for your vehicle, but just cannot find anything you like or that is cost-effective? No need to look any further as Holley has created a full-color touch screen dash that includes sensors for monitoring basic engine parameters as well as a GPS speedometer all in a cost-effective package. Holley's standalone digital dash has great features such as, a weather-resistant aluminum housing for durability, multiple gauge and indicator type selections, customizable screen and gauge layouts, and a virtual switch panel just to name a few. With the integrated 3 axis accelerometer and data logging, the dash is ideal for anything from a JR dragster to Sportsman racing. It is also equally at home in a daily driver or a show winning roadster.
Features:
- Plug and play to Holley EFI systems via CAN bus (not compatible with Sniper 2)
- Weatherproof aluminum housing allowing flexible mounting options (template included)
- 7Ó screen with 800 x 480 resolution measuring at 4.625" H x 7.5Ó W x 1" Depth
- Auto brightness and dimming with low glare to the touchscreen to view from any driving angle
- 10 preconfigured screens you can customize to personal preferences displaying any measurements
- Complete customizable display of all EFI parameters including every user configurable input and output available
- Numerous gauge and indicator types with limitless customization options
- Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual switch panel replacing the need for physical switches in vehicles
- Built in warning lights and alarms to keep you alert for any set parameters
- Progressive shift light and multiconfiguration light bar
- Control and on-screen playback of data logs
- Download and save data logs to external USB memory stick or expand internal storage on onboard microSD card
- Integrated 3 Axis Accelerometer
- Ability to connect to Holley and non-Holley ECUÕs

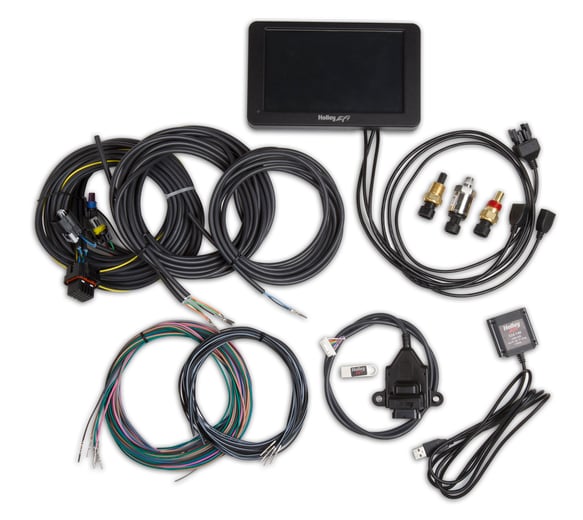

- Includes digital dash with input/output adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, coolant temperature sensor, manifold air pressure (MAP) sensor, GPS module
About Holley EFI
Find standalone EFI for LS, Coyote, Hemi and more at Holley.com. From engine swapping to managing up to 4000 horsepower, we have a solution for every project!
