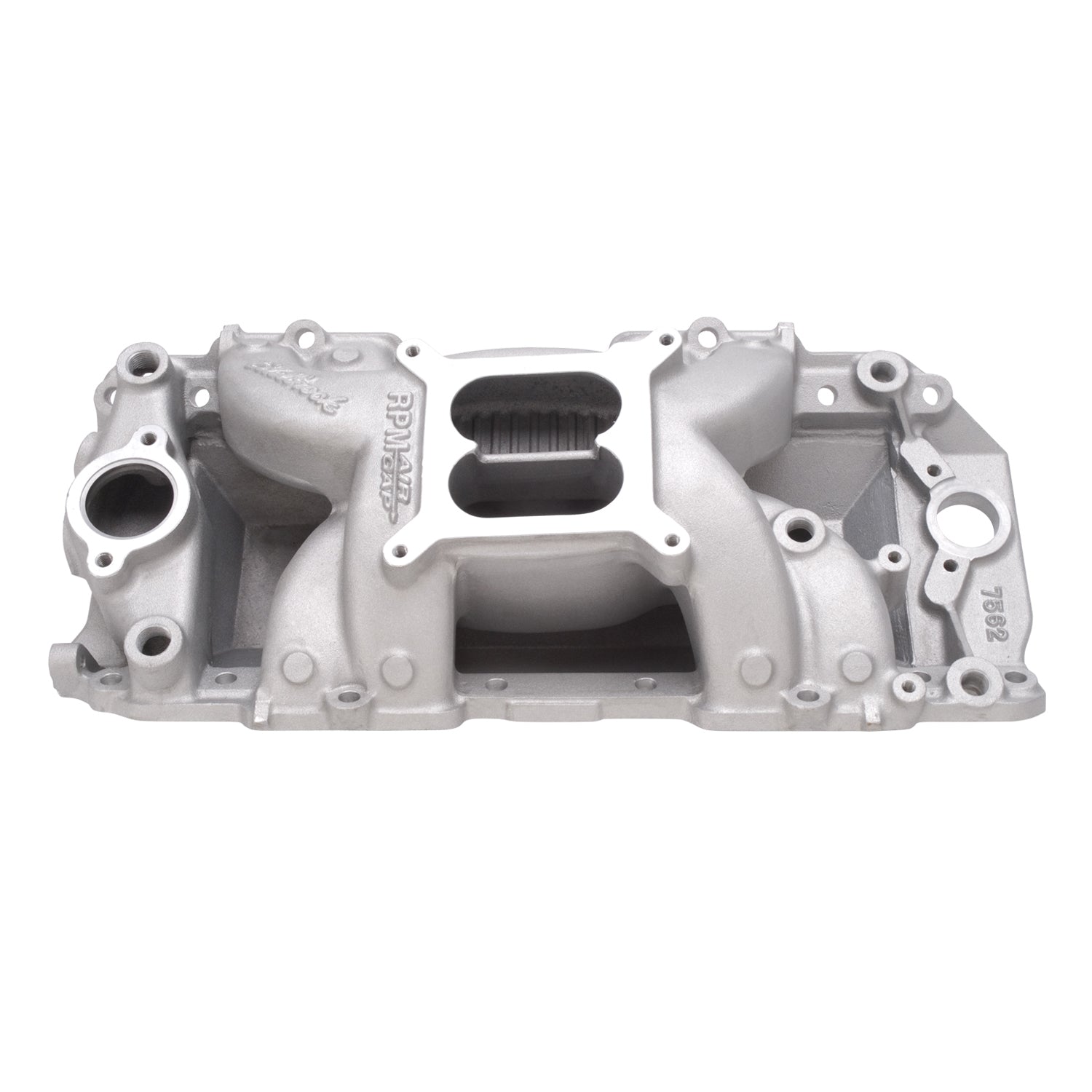

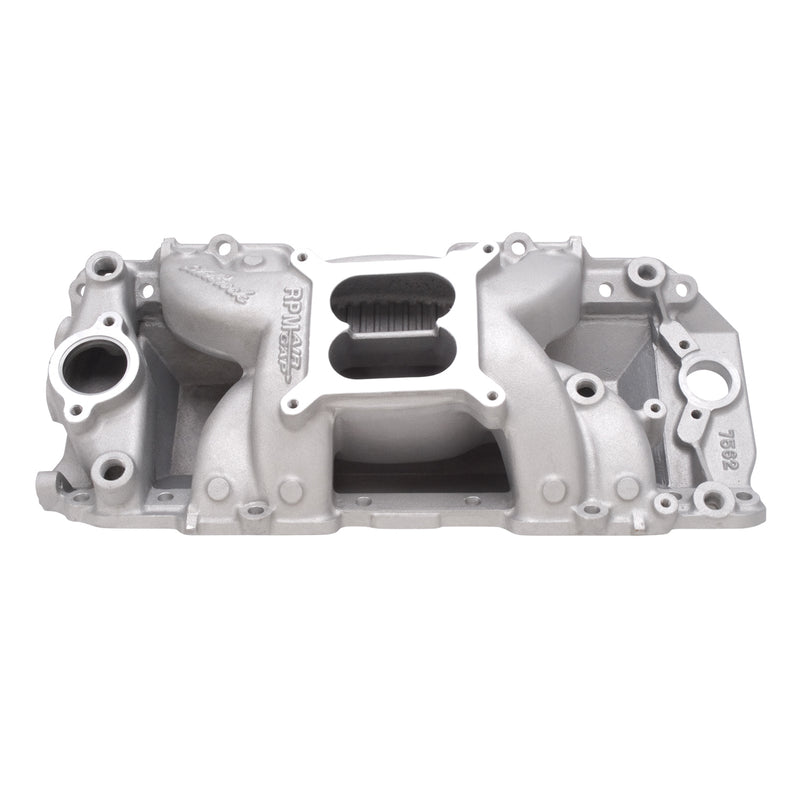

The Edelbrock RPM Air-Gap 2-R #7562 intake manifold is designed for street 396-502 c.i.d. Chevrolet V8's with high-performance rectangular-port heads, the RPM Air-Gap incorporates our race-winning technology. The open air space separates the runners from the hot engine oil, and as a result, the air/fuel mixture stays cooler for a denser charge and more power. The RPM Air-Gap 2-R #7562 intake manifold is a dual-plane, high-rise design with a 180-degree firing order to produce incredible top-end horsepower while retaining good throttle response. The larger plenum and runners match the free-flowing exhaust, high-lift cams and other modifications of a high output engine. They are intended for high-performance street or competition engines that run up to 6500 rpm. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square-bore carbs only. No provision for exhaust heated chokes and no exhaust crossover. The Edelbrock RPM Air-Gap 2-R #7562 also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.
Installation Notes:
¥ Recommended intake gasket: Edelbrock #7202
¥ Manifold height: A-4.45", B-6.0"
¥ Carb pad height: 5.22"
¥ Port exit dimensions: 1.56" x 2.24"
¥ Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro.
¥ Includes rear water outlets
¥ Two distributor clamp locations
¥ Accepts late-model waterneck, A/C, alternator, and H.E.I.
¥ Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
¥ Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
