Designed for racers and enthusiasts who want more control than EZ-EFI¨/EZ-EFI 2.0¨Êbut a simpler option than full XFI 2.0ª. The programmable and custom-tunable unit is now available with a 4150-style, 1200-horsepower-capable throttle body to provide easy installation when upgrading a previously carbureted setup. The throttle body is based on the popular EZ-EFI 2.0¨ version.
Custom-Tunable Throttle Body EFI to Fill the Gap Between EZ-EFI & XFI 2.0
Designed for muscle car, late model street, raceÊand sportsman drag racing engines, along with boosted and nitrous applications, the FASTª XFI Sportsmanª Engine Control System is a fully software-tunable EFI setup. It requires a laptop for tuning and uses proven FASTª C-Com¨ software, which comes packaged along with the necessary USB connectivity cable. The system offers both load-indexed speed density or Alpha-N tuning strategies; most users will use speed density but the Alpha-N option is specifically added to serve Sportsman drag racers looking for absolute consistency.
Data Loggingʥ NitrousÊ& Boost Capable ¥ Controls Fuel & Timing or Fuel Only
The FASTª XFI Sportsmanª System features full tables to monitor fueling, acceleration fuel, timing and air/fuel targets. A user-configurable auxiliary input channel and full-function data logging are also included. It supports both naturally aspirated and boosted applications up to 5 bar, is compatible with wet nitrous and has nitrous timing retard control. Built-in CAN network support for the EZ-TCUª, EZ-LSª, XIMª and eDashÊmeans users can easily plug-and-play those components with the included CAN networkÊwire. The FASTª XFI Sportsmanª Engine Control System also features a Bosch wide-band 02 sensor, utilizes built-in diagnostic LEDs, a waterproof ECU enclosure and includes a premium, mesh-type wire loom multi-port harness. Plug-and-play with FASTª Distributors, EZ-LSª or XIMªÊfor electronic timing control or can be used with an EFI distributor of your choice and a FASTª Crank Trigger. Or the system can be used to control fuel only and be used with a standard carb-type distributor (Ex. HEI) where timing is set manually.
Stock-to-1200HPÊThrottle Body; Integral Pulse DamperÊAllows ReturnÊor Returnless Fueling
Eight-injector, die cast throttle body(same throttle body thats available w/ EZ-EFI 2.0¨) features commonly available late model OEM sensors for accuracy and durability and supports from stock to 1200 horsepower (the highest on the market) engines. It flows more air than the first generation EZ-EFI¨ throttle body due to an improved inlet, while a new secondary shaft throttle stop adjustment provides even more precise idle airflow adjustment and balance. Meanwhile, an industry exclusive and unique-to-FASTª integrated fuel pulse damper creates ultra-precise fuel control and allows return or returnless style fuel systems to be used. This throttle body also incorporates needle-bearing supported shafts instead of bushings and an integrated fuel rail design with crossover for tighter packaging. Setup includes the market's fewest connection wires.
System Features Summary:

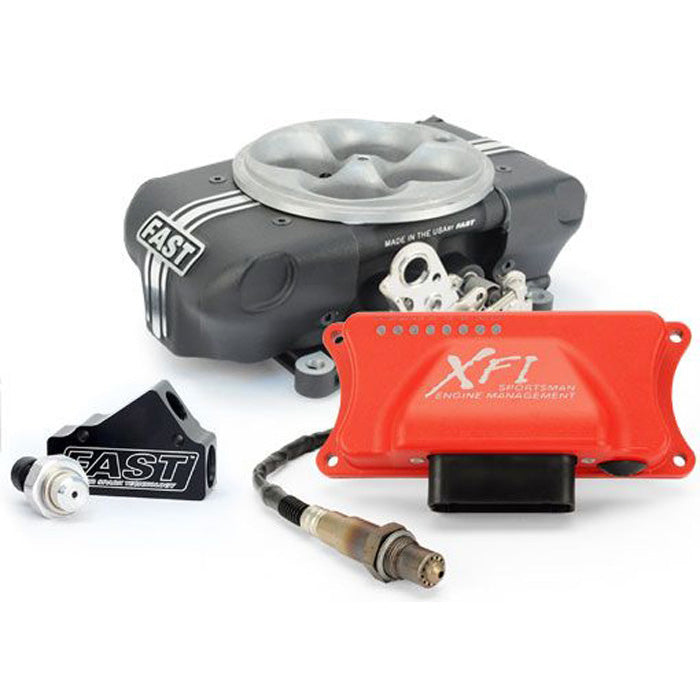

Includes ECU, assembled throttle body w/ sensors/injectors, wiring, wide-band O2 & elec. fuel pressure kit
Supports N/A, boosted & nitrous (built-in timing retard control) applications
FASTª C-Com¨ tuningÊsoftware;ÊIncluded w/ necessary USB connection cable
Same self tuning strategy that EZ-EFI¨ offers but is user disabled / enabled
Works w/ standard carb-type distributors orÊFASTª Distributors for plug-and-play electronic timing control
Offers speed density & Alpha-N tuning strategies; Alpha-N included mostly for Sportsman drag racers
ECU has LED diagnosticsÊ& EZ-Testª indicator lights
High-quality wiring w/ mesh loom & wide-band o2
XFI Sportsmanª throttle body features:
Same throttle body thats available w/ EZ-EFI 2.0¨
Higher flowing & higher HP Capable over original EZ-EFI¨Ê
All sensorsÊplug intoÊmain harnessÊvia single connector
Holley carb-style: throttle linkage,Êoverall heightÊ& 4150 bolt pattern
(8) hidden injectors; Uses (4) at idleÊ&Êphases in additional (4) as needed
Supports stock-to-1200HP; Due to advanced injector staging
ÊMarkets only fuel pulse damper creates precise fuel control
Return or returnless-style fuel systems supported
E85-capable up to 800HP
Plug-and-play (w/ single connector) accessories:
EZ-LSª GM LS Ignition Module
XIMª Ford Modular/Chrysler Hemi/GM LS Ignition Module
eDash Sensor Dash/Touchscreen Hand-Held Tuner
EZ-TCUª GM Overdrive Transmission Controller
Ê
Also Available As A Multi-Port EFI SystemÊWITHOUT Throttle Body
